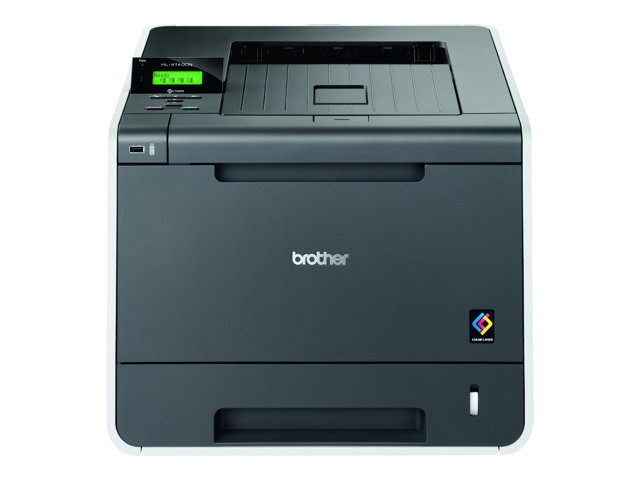

Brother HL-4140CN - printer - colour - laser

£141.20 ex VAT

£169.44 inc VAT

10+ available *
  • Product Data Sheet
  • Quick Start Guide
  • Media Type - Envelopes, labels, plain paper, glossy paper, bond paper, recycled paper, thick paper
  • Dimensions (WxDxH) - 41 cm x 48.6 cm x 31.3 cm
View more details
Product Code:
P104232P
Manufacturer No:
HL4140CNZU1

Description

Compatability The HL-4140CN can print up to 22 ppm in mono and color thanks to single pass print technology. It's also one of the secure in its class, thanks to SSL, ensuring that unsecured data passing over the network cannot be accessed by other users.

Brother HL-4140CN - Printer - colour - laser - A4/Legal - 2400 x 600 dpi - up to 22 ppm (mono) / up to 22 ppm (colour) - capacity: 300 sheets - USB, LAN, USB host

Specifications

Basic Specifications

Manufacturer's Part Number
HL4140CNZU1
EAN
4977766684521
Product Description
Brother HL-4140CN - printer - colour - laser
Networking
Print server - Ethernet, Fast Ethernet - integrated
Weight
21 kg
Dimensions (WxDxH)
41 cm x 48.6 cm x 31.3 cm
Manufacturer Warranty
1 year warranty
Microsoft Certification
Compatible with Windows 7
Processor
400 MHz
Technology
Laser Printer
USB Port
Yes
Media Type
Envelopes, labels, plain paper, glossy paper, bond paper, recycled paper, thick paper
Environmental Standards
ENERGY STAR Qualified , Blue Angel
System Requirements
Linux, Microsoft Windows 2000 Professional, Microsoft Windows XP Home Edition, Microsoft Windows XP Professional, Microsoft Windows Server 2003, Microsoft Windows XP Professional x64 Edition, Microsoft Windows Server 2003 x64 Edition, Apple MacOS X 10.5.x, Apple MacOS X 10.4.11, Microsoft Windows Vista (32/64 bits), Apple MacOS X 10.6.x, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits)
Total Media Capacity
300 sheets
Interface
USB, LAN, USB host
RAM Installed ( Max )
128 MB ( 384 MB ) - DDR2 SDRAM - SO DIMM 144-PIN
Print Speed
Up to 22 ppm - B/W ¦ Up to 22 ppm - colour
Language Simulation
PostScript 3, PCL 6, PDF 1.7
Printer Type
Workgroup printer - laser - colour
Max Resolution ( B&W )
2400 x 600 dpi
Max Media Size (Standard)
Legal, A4
Max Media Size (Custom)
220 mm x 406.4 mm
Media Handling
250-sheet input tray, 50-sheet multipurpose tray
Min Media Size (Custom)
76.2 mm x 116 mm
Model
4140CN
Additional Paper Tray
1 x 500 sheet
Dimensions
410mm (W) x 486mm (D) x 313mm (H) - Weight 21kg
Double Sided Printing
Manual
Emulations
PCL6, BR-Script3
First Page
16 Seconds
In The Box
Mono toner cartridge (K): 2500 pages, Colour toner cartridges CMY: 1500 pages, Drum unit: up to 50000 pages, Power supply cord, Driver software for Windows & Apple Macintosh, Quick Set-up Guide
Interface Type(s)
USB & Network
Memory (Maximum)
128MB (384MB Max)
Mono or Colour Printer
Colour
Network Ready
Yes
Operating Systems Supported
Windows & Mac
Paper Handling Input 1
250 Sheet Input Tray
Paper Handling Input 2
50 Sheet Multipurpose Tray
Printer Resolution
2400 x 600 dpi
Product Group Output
A4
Product Summary
Brother HL4140CN A4 Colour Laser Printer
Speed Colour
22ppm
Speed Monochrome
22ppm
Warranty
1 year on site warranty (upon registration)
Max Media Size
Legal (216 x 356 mm), A4 (210 x 297 mm)
Media Size Class
A4/Legal

Software / System Requirements

Software Included
Drivers & Utilities
OS Required
Linux, Microsoft Windows 2000 Professional, Microsoft Windows XP Home Edition, Microsoft Windows XP Professional, Microsoft Windows Server 2003, Microsoft Windows XP Professional x64 Edition, Microsoft Windows Server 2003 x64 Edition, Apple MacOS X 10.5.x, Apple MacOS X 10.4.11, Microsoft Windows Vista (32/64 bits), Apple MacOS X 10.6.x, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits)

Environmental Parameters

Sound Emission (Idle)
33 dB
Sound Emission (Operating)
57 dB

Miscellaneous

Consumables Included
1 x toner cartridge ( black ) - up to 2500 pages ¦ 1 x toner cartridge ( cyan ) - up to 1500 pages ¦ 1 x toner cartridge ( magenta ) - up to 1500 pages ¦ 1 x toner cartridge ( yellow ) - up to 1500 pages
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.

Networking

Networking
Print server - integrated
Data Link Protocol
Ethernet, Fast Ethernet
Network / Transport Protocol
LPR/LPD, ARP, SMTP, FTP, APOP, BOOTP, DHCP, DNS, RARP
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, IPP, SNMP 2c, HTTP, HTTPS, FTP, TFTP
Security Protocols & Features
Kerberos, Secure Print, SSL, LEAP, 802.1x

General

Printer Type
Workgroup printer - laser - colour

Expansion / Connectivity

Expansion Slot(s)
Memory - SO DIMM 144-PIN
Connections
1 x Gigabit LAN - RJ-45 ¦ 1 x USB 2.0 - 4 PIN USB Type B ¦ 1 x direct print port - 4 PIN USB Type A

Manufacturer Warranty

Service & Support
1 year warranty
Service & Support Details
Limited warranty - 1 year ¦ Technical support - lifetime

Power

Power Device
Power supply - internal
Power Consumption Operational
560 Watt
Power Consumption Stand by / Sleep
65 Watt

RAM

RAM Installed ( Max )
128 MB / 384 MB (max)
Technology / Form Factor
DDR2 SDRAM - SO DIMM 144-PIN

Processor

Processor
400 MHz

Environmental Standards

Blue Angel
Yes
ENERGY STAR
Yes

Dimensions & Weight (Shipping)

Width (Shipping)
65 cm
Depth (Shipping)
57.4 cm
Height (Shipping)
52.1 cm

Printer

Print Speed
Up to 22 ppm - B/W ¦ Up to 22 ppm - colour
Built-in Devices
Status LCD
Connectivity Technology
Wired
Interface
USB, LAN, USB host
Max Resolution ( B&W )
2400 x 600 dpi
PostScript Support
Standard
First Print Out Time B/W
16 sec
Language Simulation
PostScript 3, PCL 6, PDF 1.7
Fonts Included
66 x scalable PCL ¦ 12 x bitmapped ¦ 13 x barcode ¦ 66 x PostScript
Media Handling
250-sheet input tray, 50-sheet multipurpose tray

Media Handling

Media Type
Envelopes, labels, plain paper, glossy paper, bond paper, recycled paper, thick paper
Media Size Class
A4/Legal
Max Media Size
Legal (216 x 356 mm), A4 (210 x 297 mm)
Min Media Size (Custom)
76.2 mm x 116 mm
Max Media Size (Custom)
220 mm x 406.4 mm
Media Sizes
ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Folio (216 x 330 mm), JIS B5 (182 x 257 mm), B6 (125 x 176 mm)
Media Weight
60 g/m2 - 163 g/m2
Total Media Capacity
300 sheets
Media Feeder(s)
1 x autoload - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m2 - 105 g/m2 ¦ 1 x autoload - 50 sheets - 220 x 406.4 mm weight: 60 g/m2 - 163 g/m2
Max Media Capacity
800 sheets
Output Trays Capacity
150 sheets

Dimensions & Weight

Width
41 cm
Depth
48.6 cm
Height
31.3 cm
Weight
21 kg
