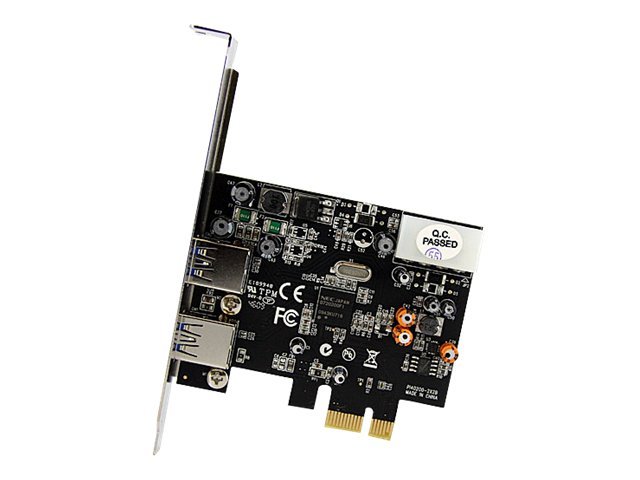

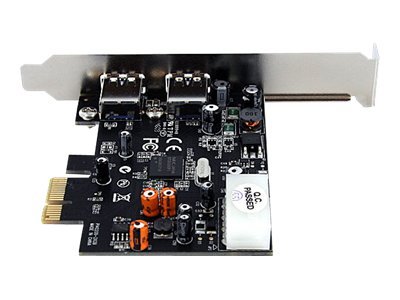

StarTech.com 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter - USB adapter

£16.99 ex VAT

£20.38 inc VAT

Ordered on Request
  • Processor - 1 x µPD720200 - NEC
  • Form Factor - Plug-in card
  • Data Transfer Rate - 5 Gbps
  • Data Link Protocol - USB, USB 2.0, USB 3.0
  • Interface (Bus) Type - PCI Express x1
View more details
Product Code:
P129308P
Manufacturer No:
PEXUSB3S2

Description

Compatability Add 2 USB 3.0 ports to your desktop computer through a PCI Express expansion slot. Providing speeds up to 10x faster than that of USB 2.0, this PCI Express USB 3.0 card enables you to access your data and transfer files much faster than USB 2.0, by adding two USB 3.0 ports to your PCI Express capable PC.

Featuring a native NEC PCI Express host controller chipset, the new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.

In addition to providing a much faster transfer rate the PEXUSB3S2 USB 3.0 card also supplies 900mA of power per USB port, allowing more and more external devices to operate without the need of an additional power source.

StarTech.com 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter - USB adapter - PCIe - USB 3.0 x 2 - for P/N: USB3S2SATA, SAT3510BU3

Specifications

Basic Specifications

Manufacturer's Part Number
PEXUSB3S2
EAN
0065030837125
Product Description
StarTech.com 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter - USB adapter
Device Type
USB adapter
Weight
60 g
Dimensions (WxDxH)
12.1 cm x 7.6 cm x 1.9 cm
Manufacturer Warranty
Limited lifetime warranty
Processor
1 x µPD720200 - NEC
Form Factor
Plug-in card
Data Link Protocol
USB, USB 2.0, USB 3.0
Compliant Standards
USB 1.1, USB 2.0, USB 3.0
Ports
USB 3.0 x 2
Data Transfer Rate
5 Gbps
Ports Qty
2 ports
Interface (Bus) Type
PCI Express x1
System Requirements
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Model
2 Port PCI Express SuperSpeed USB 3.0 Card Adapter
Designed For
P/N: USB3S2SATA, SAT3510BU3

Software / System Requirements

Software Included
Drivers & Utilities
OS Required
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 80%

Miscellaneous

Compliant Standards
FCC, RoHS

Networking

Ports
USB 3.0 x 2
Connectivity Technology
Wired
Data Link Protocol
USB, USB 2.0, USB 3.0
Data Transfer Rate
5 Gbps
Compliant Standards
USB 1.1, USB 2.0, USB 3.0

General

Device Type
USB adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express x1

Expansion / Connectivity

Interfaces
2 x USB 3.0 - 9 pin USB Type A
Compatible Slots
1 x PCI Express x1

Manufacturer Warranty

Service & Support
Limited lifetime warranty
Service & Support Details
Limited warranty - lifetime

Processor / Memory

Processor
1 x µPD720200 - NEC

Dimensions & Weight

Width
12.1 cm
Depth
7.6 cm
Height
1.9 cm
Weight
60 g

Compatibility Information

Designed For
StarTech.com 3.5in USB 3.0 SATA External Hard Drive Enclosure w/ Fan, SuperSpeed USB 3.0 SATA Adapter Cable for 2.5in or 3.5in Hard Drives
